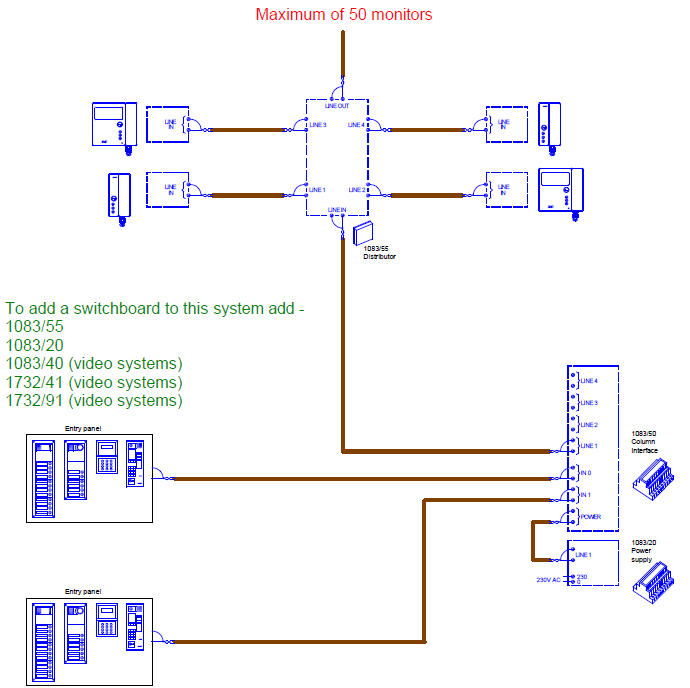

How to cable a 2 entrance 2Voice 2 wire system with up to 50 handsets/monitors

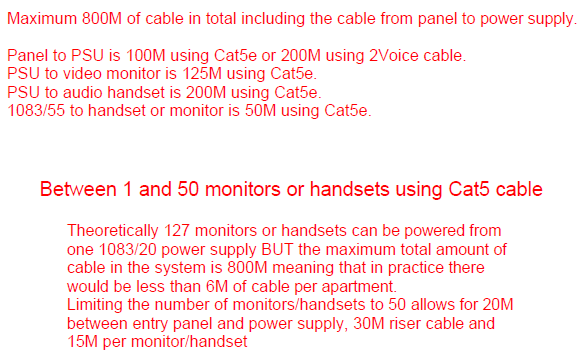

This article will show you the type of cable and the cable distances required for installing a 2 entrance 2Voice 2 wire system with up to 50 handsets and monitors.


IMPORTANT NOTE: If installing a switchboard you could consider using the 2Voice IPerCom gateway. In this solution a 2 wire IP gateway can be installed making the entrance panels IP allowing for a more flexible installation whilst keeping a simple to install 2 wire riser. In this solution the switchboard would be PC based using the IPerCom switchboard software with advanced features (1060/41 USB switchboard handset would be required).
