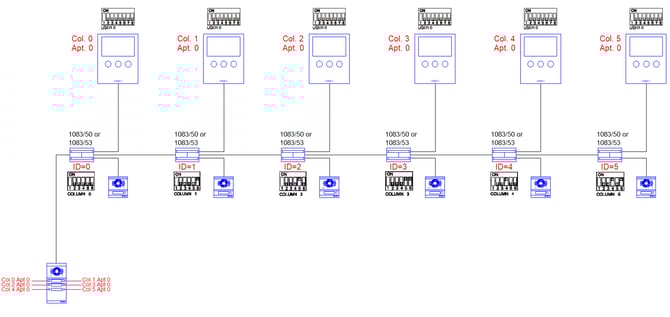

This type of configuration is required when installing a system with a ‘main’ panel and a number of columns or blocks, which may or may not have a ‘secondary’ panel –
In this example, we will configure a button on the main panel to call Col. 3 Apt. 0.
Configuration of the intercom panel is carried out using the browser of a smartphone or tablet.
The procedure consists of enabling the intercom panel’s built in Wi-Fi direct signal, and then connecting your smartphone or tablet to access the built in configuration web page.
Press and hold the programming button on the rear of the 1083/38 or 1083/48 for five seconds. The three LEDs on the front will flash.
At this point the intercom panel is now a Wi-Fi access point, and it is necessary to connect your smart phone or tablet to it.
In your smart phone or tablet settings first turn off mobile data.

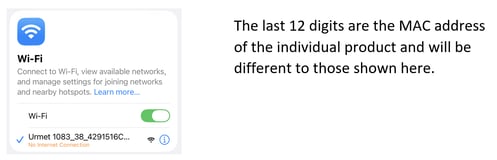

Now in your device Wi-Fi settings, find the intercom panel, which will look something like this –
Once you are connected to the intercom panel Wi-Fi, scan this QR code or the QR code on the rear of the product (or type 192.168.4.1 into your browser bar) –
You should now be connected to the configuration page of the intercom station.
First change the language option to English and change the Advanced calling button configuration from Off to On –

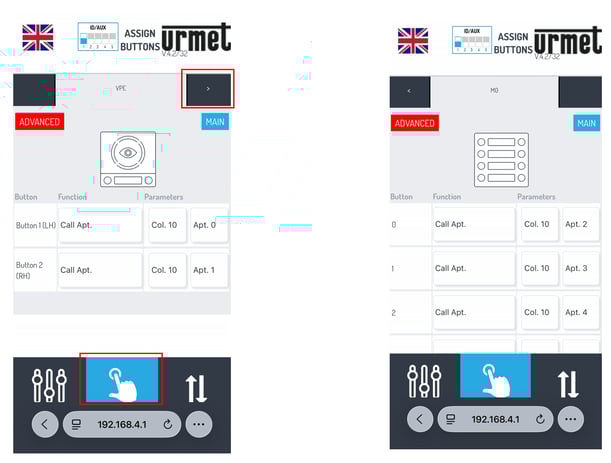

Next click the button icon and then click the arrow in the top right of the screen to move to the next page of buttons –

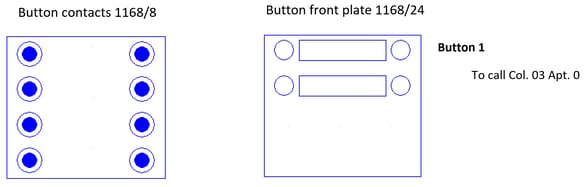

Button contacts for the 1168/8 are labelled like this -

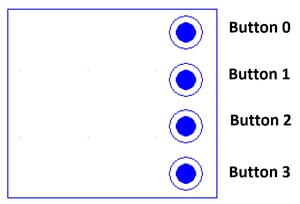

And for the 1168/4 like this –
The above shows the position of the button contacts. The layout of the actual buttons will depend on the front plate module that you have.

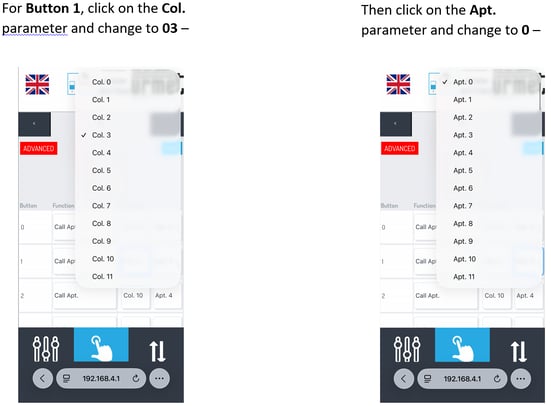

For our example –
Click the Transfer button and then click Send and close –
You will see this message –
