Section 1
To use the VOG7 touchscreen, the IPerVoice system server must be at version 5.7.0-06 or above.
If the sever is not at this version or above, it will be necessary to upgrade it.

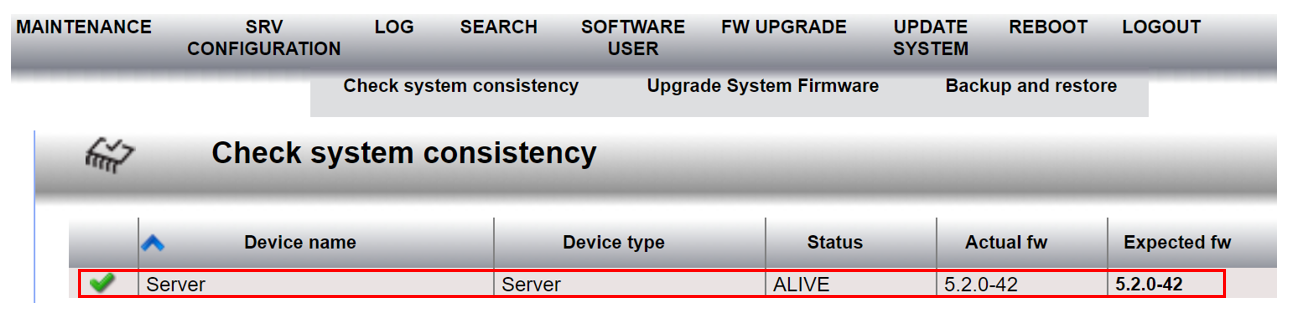

To check the server firmware version, log in to the server then click FW UPGRADE and then Check system consistency –
In the list of devices, you will find the server and its firmware version –
If the server is already at version 5.7.0-06 or above, proceed to Section 2.
If a server upgrade is required, this should be planned in advance.
A server upgrade including the subsequent updating of some IP devices by the server, can take up to one hour.
During the initial server upgrade, the system will be out of action, and then as IP devices are automatically updated by the server, those devices will come back on line one at a time.
You should consider having access to all network switches where IPerVoice devices are connected and also consider opening all access-controlled doors.
The latest server firmware is available to download here –
IPerVoice Firmware Upgrade - Download
Upgrade procedure.

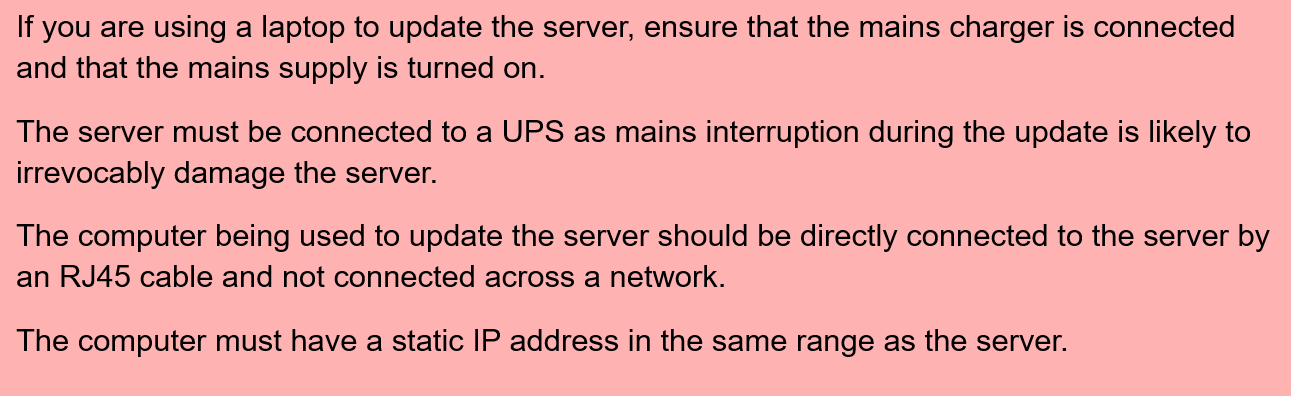

Unplug the server LAN cable from the IPerVoice network and connect the server LAN directly to the PC LAN.
REBOOT the server –

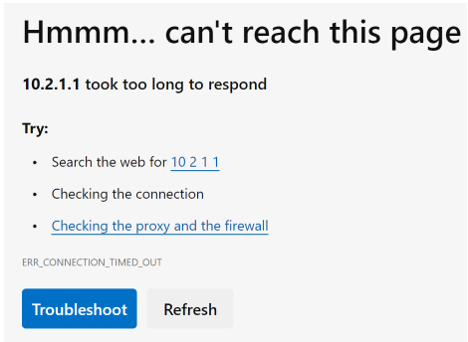

You may lose connection to the server while it is re-booting –
If this happens, refresh the browser to get back to the login page and log in again.

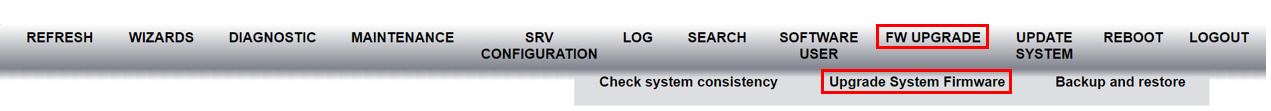

Click FW UPGRADE and then Upgrade System Firmware –

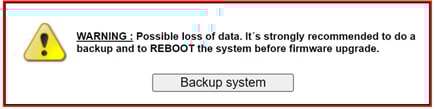

Next you must backup the server –

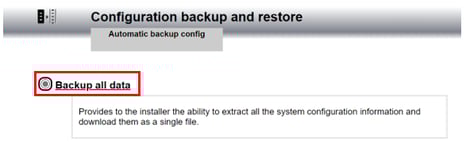

Choose Backup all data (diagnostic logs are not required) –
Choose where to save the backup file.
Click back to main page.
Next click FW UPGRADE and then Upgrade System Firmware –
Click next
Click Choose File –
Browse to the location where you saved the firmware upgrade file to select it.
Click Yes, continue –
The update normally takes less than 10 minutes.

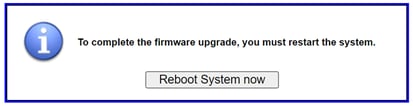

When the update has finished you will be prompted to reboot the server –
Once the re-boot is complete, check in the Check system consistency tab that the server is now at the latest version –
Unplug the PC LAN cable from the server and connect the server LAN cable back in to the IPerVoice network.
Section 2
The next step is to check the DHCP mode of the server.
If the DHCP mode is Free, then any new devices that are installed will be given an IP address and automatically appear in the New device section.
If DHCP mode is Blocked, then new devices will need to be added manually.
Note that DHCP is normally only Free in systems that are being newly commissioned and is generally set to Blocked when commissioning is finished, therefore it is likely that if you are replacing a device, the DHCP will be Blocked, but you do need to check.

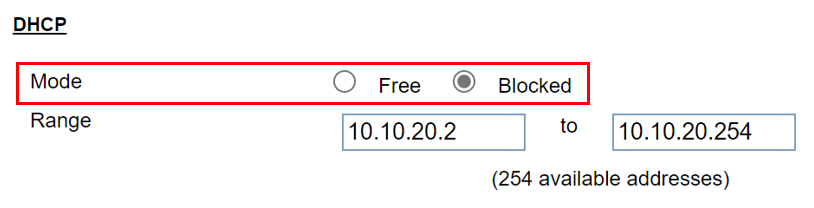

To check, click SRV CONFIGURATION –
Adding a device when the DHCP Mode is Free
Unplug the 1717/31 or 1717/33 that is to be replaced.
Plug in the 1761/31 or 1761/33.

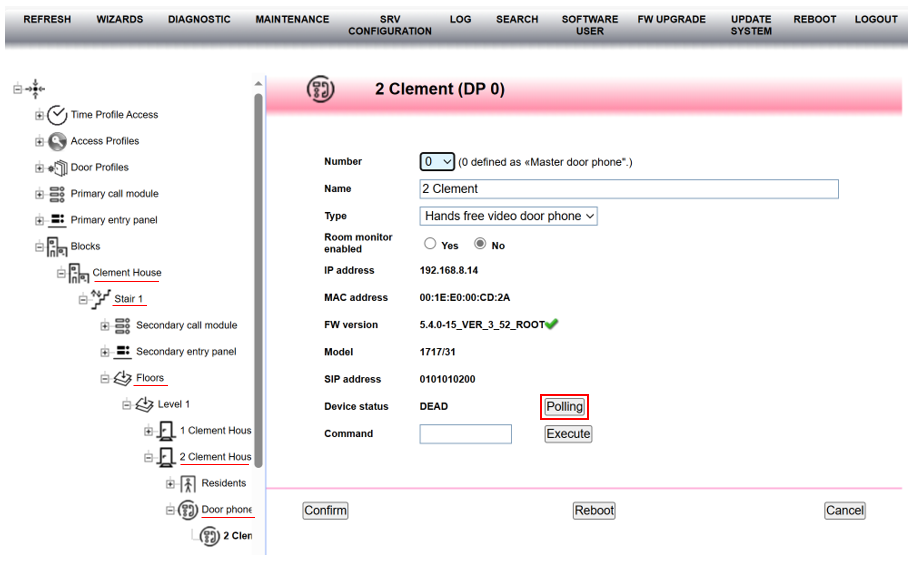

Browse to the Block/Stair/Floor/Apartment/Door phone that is to be replaced –
Click Polling and the Device status should be DEAD

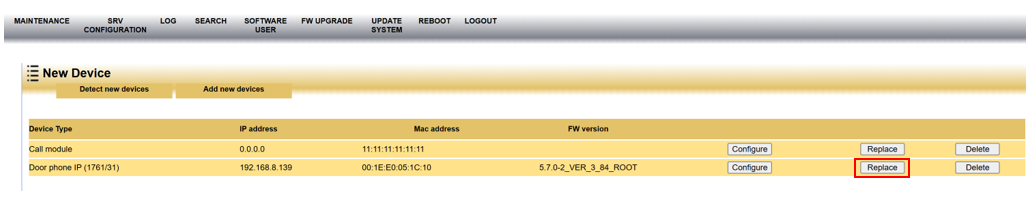

Click New device –
The new touchscreen should be available.
Confirm that the MAC address you can see matches the MAC address of the touchscreen that you have fitted.

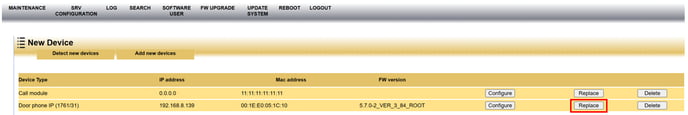

Click Replace –

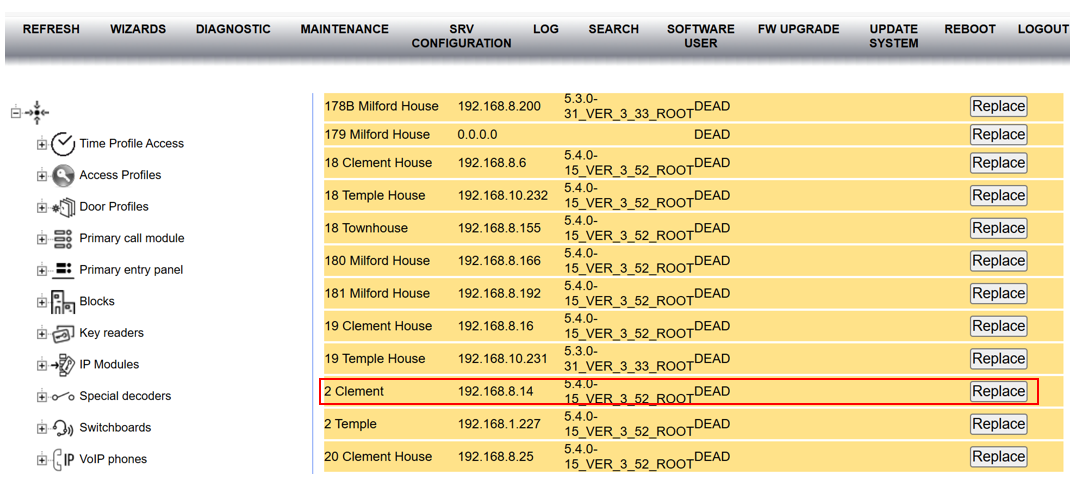

You will then see a list of compatible devices that are ‘DEAD’ in the system and therefore can be replaced.

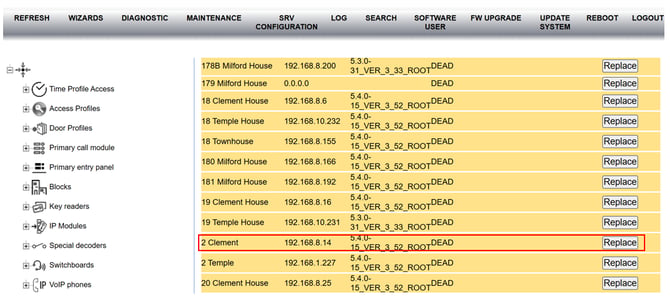

In our example, the device to be replaced is the touchscreen in 2 Clement House.
Click the Replace button next to this device –

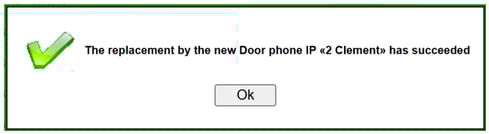

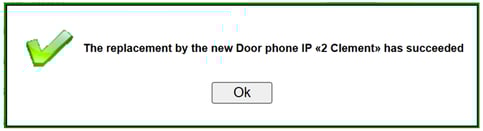

Click Ok –
And click UPDATE SYSTEM –
Adding a device when the DHCP Mode is Blocked

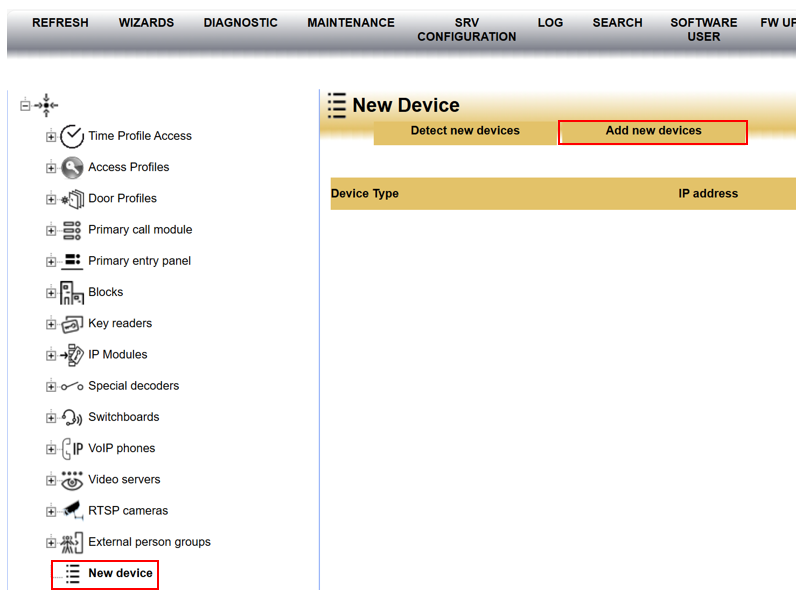

Click New device then Add new devices –

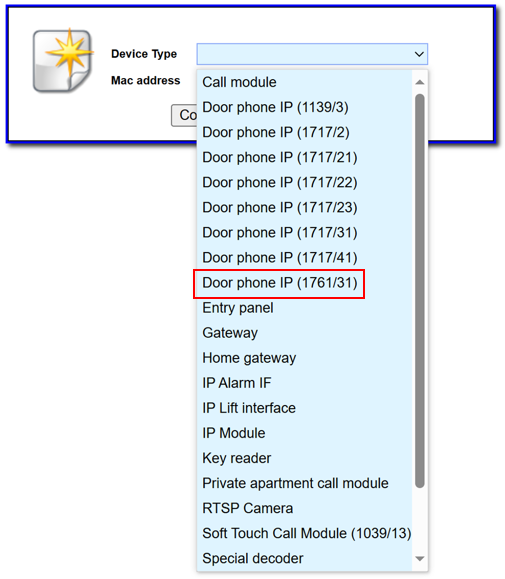

Click the Device type dropdown and choose Door phone IP (1761/31) –

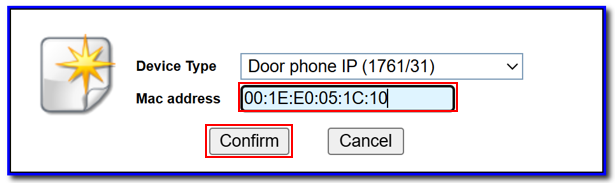

Then enter the MAC address of the touchscreen that you have fitted and click Confirm –
Click Replace –

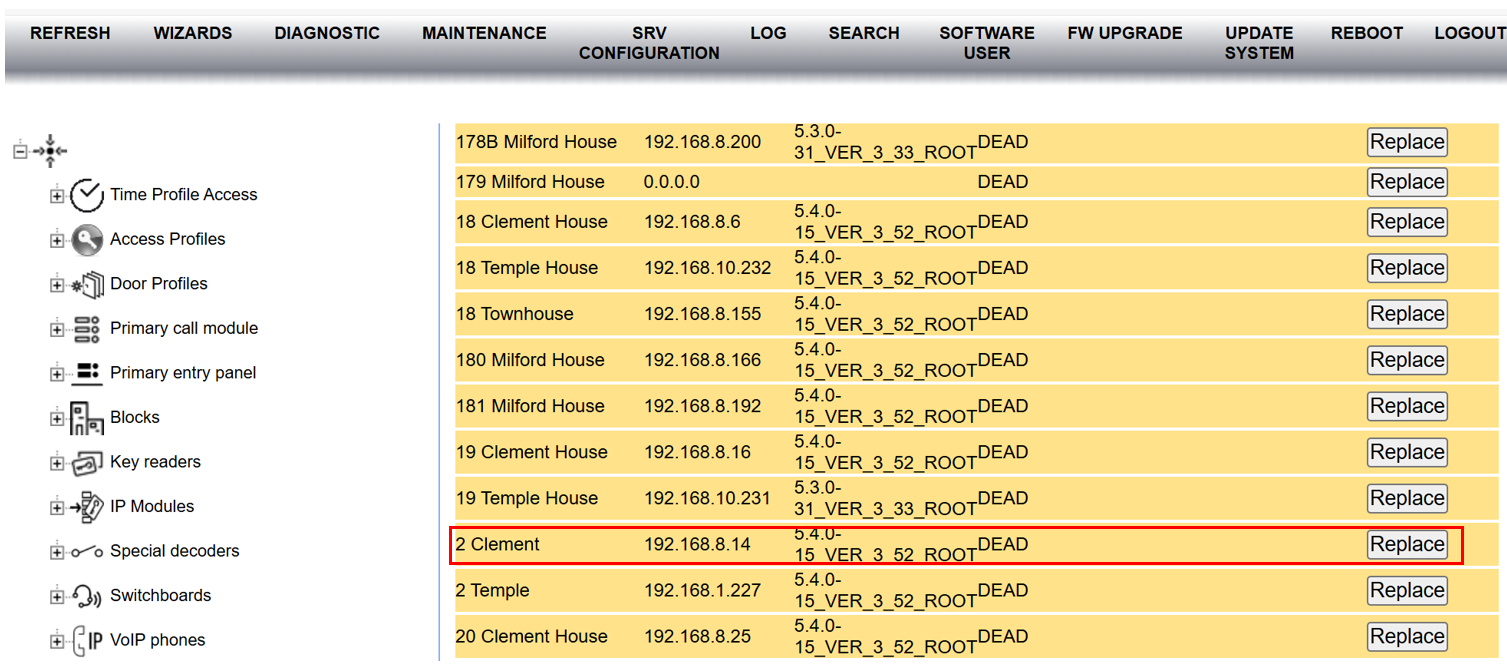

You will then see a list of compatible devices that are ‘DEAD’ in the system and therefore can be replaced.

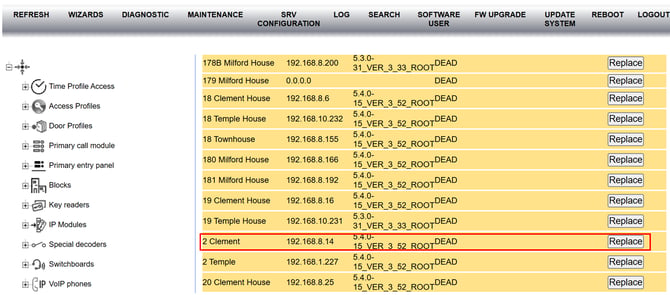

In our example, the device to be replaced is the touchscreen in 2 Clement House.
Click the Replace button next to this device –
Click Ok –
And click UPDATE SYSTEM –
